power supply

The power supply works like a charm. Since the water pump needs 12V and the electromagnet needs 5V, we'll have to attach the ground from the power supply to the center post of the switch on the contol panel. Then we'll attach the positive leads to the pump and the electromagnet. We need to mount the power supply somewhere near the back of the elephant, I think, to keep the AC cord out of the way. Then we should mount a water reservoir on the opposite back corner, because water + AC + metal elephant = no more Anthony. We should run the wires through the metal tubing. It's going to be a lot of wire. I can't figure out where to mount the power supply's power switch. It only has a 1 foot cord.
Moving along,
I ripped the power connector off of a 428MB hard drive (don't ask), so we can use that in case we need to disconnect something. Unsoldering is not fun :-(

Here is a (not-really)-close-up of the control panel thus far. Again, cell phone, nighttime, headlights OK?

The elephant so far, in all its glory. I took this picture at night with headlights with a cell phone, so it's not the greatest quality.

water pump

OK, now I've been working on the water pump.  The 12V from the PC power supply works fine.  The pump is really noisy, but maybe that's just because it's 1:20 in the morning and my room is completely silent.  It shoots a pretty powerful stream of water.  The green hose is EXTREMELY tight on the fitting on the pump.  I had to put the end of the hose in hot water for a few minutes, and then it softened up enough, but it was difficult even then.

electromagnet

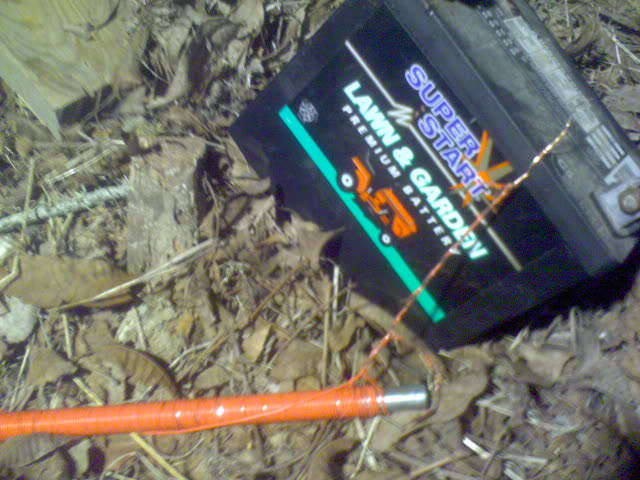

I'm working on the electromagnet right now.  The black wire that I had turned out to be the same size (22 gauge) as the red stuff already on the magnet.
The thicker core makes a stronger magnet, and it doesn't get as hot.  The +12V from the PC power supply make the wire REALLY hot really quickly, and the magnet isn't that much more powerful than with +5V.  The +5V from the power supply is strong enough, but it gets kinda hot.  I'm not sure if it's too hot, but we should get 20 gauge wire just in case.
Wrapping the wire 2 layers thick makes it hotter, while only slightly increasing the magnet's strength, so I don't think we should do that.
